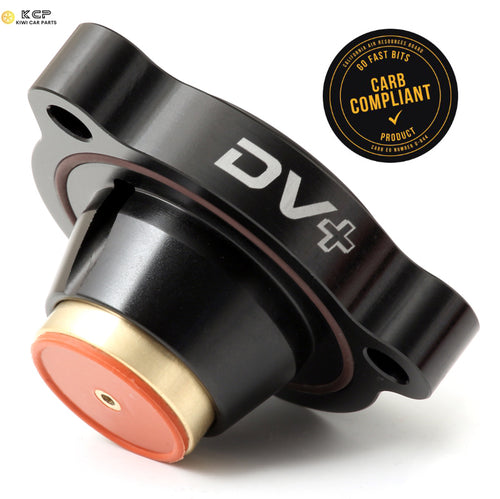

GFB DV+ 2.0T FSI TFSI TSI For VW Golf MK5 GTI / MK6 GTI / R, MK7 GTI, Audi A3/ S3, RS3 T9351

GFB DV+ T9351 Diverter Valve for VAG applications.

GFB’s DV+ solution couldn’t be simpler – keep what works and replace what doesn’t.

Retains the factory solenoid coil for seamless integration

Replaces plastic valve parts with metal for reliability and strength on chipped engines

DV+ T9351 Diverter Valve for Audi, VW, Skoda and Porsche applications also suits:

AUDI B8 (2007-2015) 1.8/2.0 TFSI

AUDI B8 (2007-2015) 1.8/2.0 TFSI

AUDI B8 (2007-2015) 1.8/2.0 TFSI

AUDI B8 (2007-2015) 1.8/2.0 TFSI

AUDI B8 (2007-2015) 1.8/2.0 TFSI

AUDI Q5 2.0TFSI (2008-2016, 8R)

AUDI Q5 2.0TFSI (2008-2016, 8R)

AUDI Q5 2.0TFSI (2008-2016, 8R)

VW Scirocco R Mk3 2.0t FSI (EA113) 06-13

VW Golf Mk6 1.4 TSI (Turbo Only, NOT Twincharged) 08-13

VW Golf R Mk6 2.0TSI 08-13

VW Golf GTI Mk6 2.0TSI 08-13

VW Polo GTI (1.8TSI 2015-2017)

AUDI S1 8X (2014-2018) 2.0TFSI

AUDI A1 1.8TFSI 2015-On

AUDI A1 2010-2014 1.4TFSI (90kW/122hp)

AUDI A6 2.0TFSI (2011-2018)

AUDI 8V (2013-2020) 1.8/2.0TFSI

AUDI 8V (2013-2020) 1.8/2.0TFSI

AUDI RS3 8V (2015-2017)

VW Golf GTI Mk7/7.5 2.0TSI 2014-2020

VW Golf GTI Mk7/7.5 2.0TSI 2014-2020

VW Golf GTI Mk7/7.5 2.0TSI 2014-2020

SKODA Octavia Mk3 1.8/2.0TSI (Inc. RS/VRS) 2013-2019

SKODA Octavia Mk3 1.8/2.0TSI (Inc. RS/VRS) 2013-2019

AUDI 8V (2013-2020) 1.8/2.0TFSI

PORSCHE Macan 2.0 (2016-On)

AUDI TT 8S 2.0TFSI 2014-2018

VW Passat B8 (MQB Platform) 1.8/2.0TSI 2015-On

VW Passat B8 (MQB Platform) 1.8/2.0TSI 2015-On Note : Non-MQB Models (I.E. USA) With The EA888 Gen3 Engine Is A Very Difficult Installation As The Factory Diverter Is Buried Deep In The Engine Bay And Access Is Very Tight.

AUDI TTRS 8S 2.5 TFSI 16-On

VW Golf Alltrack 1.8TSI 2014-On

SKODA Superb 2.0TSI (162kW) 2015-On

AUDI B9 (2015-2020) 2.0TFSI

AUDI B7 (2005-2008) 2.0TFSI

SKODA Octavia Mk2 1.4/ 1.8/ 2.0 TFSI/ TSI (Inc. VRS) 2005-2013

AUDI B9 (2015-2020) 2.0TFSI

AUDI 8P (2003-2007) 2.0TFSI EA113

AUDI 8P (2003-2007) 2.0TFSI EA113

AUDI S3 8P (2006-2013) 2.0TFSI

VW Golf GTI Mk5 2.0TFSI 04-09

VW Golf GTI Mk5 2.0TFSI 04-09

VW Tiguan 2.0 TSI 2016-2020

AUDI B9 (2016-On) 2.0 TFSI

AUDI B9 (2016-On) 2.0 TFSI

AUDI Q5 2.0TFSI (2017-2020), FY Pre-Facelift

AUDI A6 2.0TFSI (2006-2011)

SKODA Octavia Mk2 1.4/1.8/2.0TFSI/TSI (Inc. VRS) 2005-2013

SKODA Octavia Mk2 1.4/1.8/2.0TFSI/TSI (Inc. VRS) 2005-2013

AUDI 8P (2003-2013) 1.8TFSI

AUDI 8P (2003-2007) 2.0TFSI EA113

AUDI 8P (2008-2012) 2.0TFSI EA888

VW Passat B6 2.0 TSI 05-11

VW Jetta Mk5 2.0T 2005-2010

VW EOS 2.0 TFSI 2006-2015

AUDI TTRS 8J 2.5 TFSI 09-14 Note : Direct Fit

AUDI TT 8J 2.0 TFSI (EA888) 10-14 Note : Direct Fit

AUDI TTS 8J 2.0 TFSI 06-14 Note : Direct Fit

AUDI TT 8J 2.0 TFSI (EA113) 06-10 Note : Direct Fit

AUDI TTRS 8J 2.5 TFSI 09-14

AUDI TT 8J 2.0 TFSI (EA888) 10-14

VW Tiguan 2.0 TFSI 07-11

VW Tiguan 2.0 TFSI 07-11

VW Tiguan 2.0 TSI 11-16

VW Tiguan 2.0 TSI 11-16

VW Polo GTI (2.0TSI 2017-On)

AUDI A6 2.0TFSI MHEV C8 (2018-On)

AUDI RS3 8P (2011-2012)

VW Scirocco Mk3 2.0t FSI

VW Scirocco Mk3 1.4 TSI (Turbo Only)

VW Passat B8 (MQB Platform) 1.8/ 2.0TSI 2015-On Note : Non-MQB Models With The EA888 Gen3 Engine Is A Very Difficult Installation As The Factory Diverter Is Buried Deep In The Engine Bay And Access Is Very Tight.

VW Jetta GLI Mk7 2.0T 2018-On

AUDI RS3 8V Facelift (2017-On)

Direct-fit replacement with GFB’s TMS benefits

Exclusive “pilot-actuated” valve mechanism for rapid response at high boost

GFB expands the DV+ range with a direct-fit solution for the weak factory diverter valve used on many European vehicles.

The solenoid coil itself from the factory-fitted valve is great (the ECU opens it faster than any pneumatic valve so why replace it?), but the weak point however is the valve mechanism itself. So GFB’s DV+ solves this problem by replacing just the valve parts with an anodised billet aluminium housing fitted with a brass piston machined to exacting tolerances.

The end result is sharper throttle response, lightning-fast valve actuation, and it will hold as much boost as you can throw at it. Read all about the DV+ story on the next page.

Other manufacturers’ products involve replacing the entire system with a traditional pneumatic valve, requiring long vacuum hose runs, additional parts for tapping into the intake manifold vacuum, plus either a different solenoid valve to actuate the pneumatic valve or a ballast resistor to plug into the OE wiring loom. All these additional items result in a product that is slower, less responsive, more expensive and takes much longer to install.

GFB’s DV+ solution on the other hand is more responsive, less expensive, easier to install, and doesn’t cause compressor surge/turbo flutter. Oh, and it doesn’t require different springs or frequent re-builds.

Many late-model European cars use ECU controlled solenoid-type diverter valves. This is a good concept because the valve can react very quickly and it only opens when it needs to.

However, there are some problems with these valves. There are typically two types of solenoid-actuated diverter valves found standard on VAG and European cars, both of which have their shortcomings.

Common OE Problem #1
The diaphragm types are commonly known to rupture, especially when boost and temperature are increased as a result of chip tuning.

Common OE Problem #2
The plastic piston-type leaks far more than most people realise (by design, not from wear), and doesn’t always close after a high-boost gear shift.

Additionally, in both cases, the solenoid on the OE diverter is directly connected to the valve mechanism, which is not ideal because neither it nor the return spring are strong enough to open and close the valve reliably at high boost.

With problems like this, you can see why other aftermarket manufacturers assume the best solution is to replace the factory diverter entirely. Unfortunately though, whilst their replacement kits might be stronger than the factory diverter, their slower response speed and lower flow do not justify the extra cost and complexity – more of a compromise than a solution.

GFB has taken a different approach to deliver a complete solution that solves existing problems and improves performance, without compromise or a hefty price tag.

The DV+ addresses the factory valve problems with a very simple and elegant solution. Keeping the factory solenoid retains all the benefits of the stock system, and replacing the valve parts with indestructable metal components ensures strength and reliability no matter how much boost you run.

That’s not all. Rather than using the solenoid to directly actuate the valve, we’ve introduced a unique “pilot-actuation” system. This means the solenoid controls the air pressure that is used to open and close the piston, so it doesn’t matter how much boost you push through it, the DV+ will open and close reliably without ever exceeding the solenoid’s capability.

This feature also improves on the factory system by opening the valve progressively in response to boost pressure, so it only opens as much as required to get the job done (the factory valve simply opens and shuts, it cannot partially open if boost pressure is low), resulting in better throttle response.

DV+ T9351 Diverter Valve for Audi, VW, Skoda and Porsche applications also suits:

AUDI B8 (2007-2015) 1.8/2.0 TFSI

AUDI B8 (2007-2015) 1.8/2.0 TFSI

AUDI B8 (2007-2015) 1.8/2.0 TFSI

AUDI B8 (2007-2015) 1.8/2.0 TFSI

AUDI B8 (2007-2015) 1.8/2.0 TFSI

AUDI Q5 2.0TFSI (2008-2016, 8R)

AUDI Q5 2.0TFSI (2008-2016, 8R)

AUDI Q5 2.0TFSI (2008-2016, 8R)

VW Scirocco R Mk3 2.0t FSI (EA113) 06-13

VW Golf Mk6 1.4 TSI (Turbo Only, NOT Twincharged) 08-13

VW Golf R Mk6 2.0TSI 08-13

VW Golf GTI Mk6 2.0TSI 08-13

VW Polo GTI (1.8TSI 2015-2017)

AUDI S1 8X (2014-2018) 2.0TFSI

AUDI A1 1.8TFSI 2015-On

AUDI A1 2010-2014 1.4TFSI (90kW/122hp)

AUDI A6 2.0TFSI (2011-2018)

AUDI 8V (2013-2020) 1.8/2.0TFSI

AUDI 8V (2013-2020) 1.8/2.0TFSI

AUDI RS3 8V (2015-2017)

VW Golf GTI Mk7/7.5 2.0TSI 2014-2020

VW Golf GTI Mk7/7.5 2.0TSI 2014-2020

VW Golf GTI Mk7/7.5 2.0TSI 2014-2020

SKODA Octavia Mk3 1.8/2.0TSI (Inc. RS/VRS) 2013-2019

SKODA Octavia Mk3 1.8/2.0TSI (Inc. RS/VRS) 2013-2019

AUDI 8V (2013-2020) 1.8/2.0TFSI

PORSCHE Macan 2.0 (2016-On)

AUDI TT 8S 2.0TFSI 2014-2018

VW Passat B8 (MQB Platform) 1.8/2.0TSI 2015-On

VW Passat B8 (MQB Platform) 1.8/2.0TSI 2015-On Note : Non-MQB Models (I.E. USA) With The EA888 Gen3 Engine Is A Very Difficult Installation As The Factory Diverter Is Buried Deep In The Engine Bay And Access Is Very Tight.

AUDI TTRS 8S 2.5 TFSI 16-On

VW Golf Alltrack 1.8TSI 2014-On

SKODA Superb 2.0TSI (162kW) 2015-On

AUDI B9 (2015-2020) 2.0TFSI

AUDI B7 (2005-2008) 2.0TFSI

SKODA Octavia Mk2 1.4/ 1.8/ 2.0 TFSI/ TSI (Inc. VRS) 2005-2013

AUDI B9 (2015-2020) 2.0TFSI

AUDI 8P (2003-2007) 2.0TFSI EA113

AUDI 8P (2003-2007) 2.0TFSI EA113

AUDI S3 8P (2006-2013) 2.0TFSI

VW Golf GTI Mk5 2.0TFSI 04-09

VW Golf GTI Mk5 2.0TFSI 04-09

VW Tiguan 2.0 TSI 2016-2020

AUDI B9 (2016-On) 2.0 TFSI

AUDI B9 (2016-On) 2.0 TFSI

AUDI Q5 2.0TFSI (2017-2020), FY Pre-Facelift

AUDI A6 2.0TFSI (2006-2011)

SKODA Octavia Mk2 1.4/1.8/2.0TFSI/TSI (Inc. VRS) 2005-2013

SKODA Octavia Mk2 1.4/1.8/2.0TFSI/TSI (Inc. VRS) 2005-2013

AUDI 8P (2003-2013) 1.8TFSI

AUDI 8P (2003-2007) 2.0TFSI EA113

AUDI 8P (2008-2012) 2.0TFSI EA888

VW Passat B6 2.0 TSI 05-11

VW Jetta Mk5 2.0T 2005-2010

VW EOS 2.0 TFSI 2006-2015

AUDI TTRS 8J 2.5 TFSI 09-14 Note : Direct Fit

AUDI TT 8J 2.0 TFSI (EA888) 10-14 Note : Direct Fit

AUDI TTS 8J 2.0 TFSI 06-14 Note : Direct Fit

AUDI TT 8J 2.0 TFSI (EA113) 06-10 Note : Direct Fit

AUDI TTRS 8J 2.5 TFSI 09-14

AUDI TT 8J 2.0 TFSI (EA888) 10-14

VW Tiguan 2.0 TFSI 07-11

VW Tiguan 2.0 TFSI 07-11

VW Tiguan 2.0 TSI 11-16

VW Tiguan 2.0 TSI 11-16

VW Polo GTI (2.0TSI 2017-On)

AUDI A6 2.0TFSI MHEV C8 (2018-On)

AUDI RS3 8P (2011-2012)

VW Scirocco Mk3 2.0t FSI

VW Scirocco Mk3 1.4 TSI (Turbo Only)

VW Passat B8 (MQB Platform) 1.8/ 2.0TSI 2015-On Note : Non-MQB Models With The EA888 Gen3 Engine Is A Very Difficult Installation As The Factory Diverter Is Buried Deep In The Engine Bay And Access Is Very Tight.

VW Jetta GLI Mk7 2.0T 2018-On

AUDI RS3 8V Facelift (2017-On)
