Air Compressor Pump Suitable for X5 E70 X6 E71 E72 37206859714 37206799419 37106793778 Air Suspension

1 review

: In stock

$599.00 NZD $692.00 NZD

Air Suspension Compressor Pump Suit For X5 E70 X6 E71 E72 37206859714 37206799419 37106793778 37 10 6 79 3778  Brand New compressor relay is...


Ships between October 23rd - October 28th

QUESTIONS & ANSWERS

Ask a Question
  • I’m just Double checking if this is the correct part for the vehicle below: Year: 2009 Make: BMW Model: X5 Colour: BLACK Body Style: Station Wagon VIN: WBAFE82090LJ88357 Engine No: Chassis: WBAFE82090LJ88357 Vehicle Type: Seats: CC rating: 4,790cc Fuel Type: Petrol

    Hi Phil,

    Yes, it is correct part for your 2009 BMW X5.

    Regards,
    KCP Team

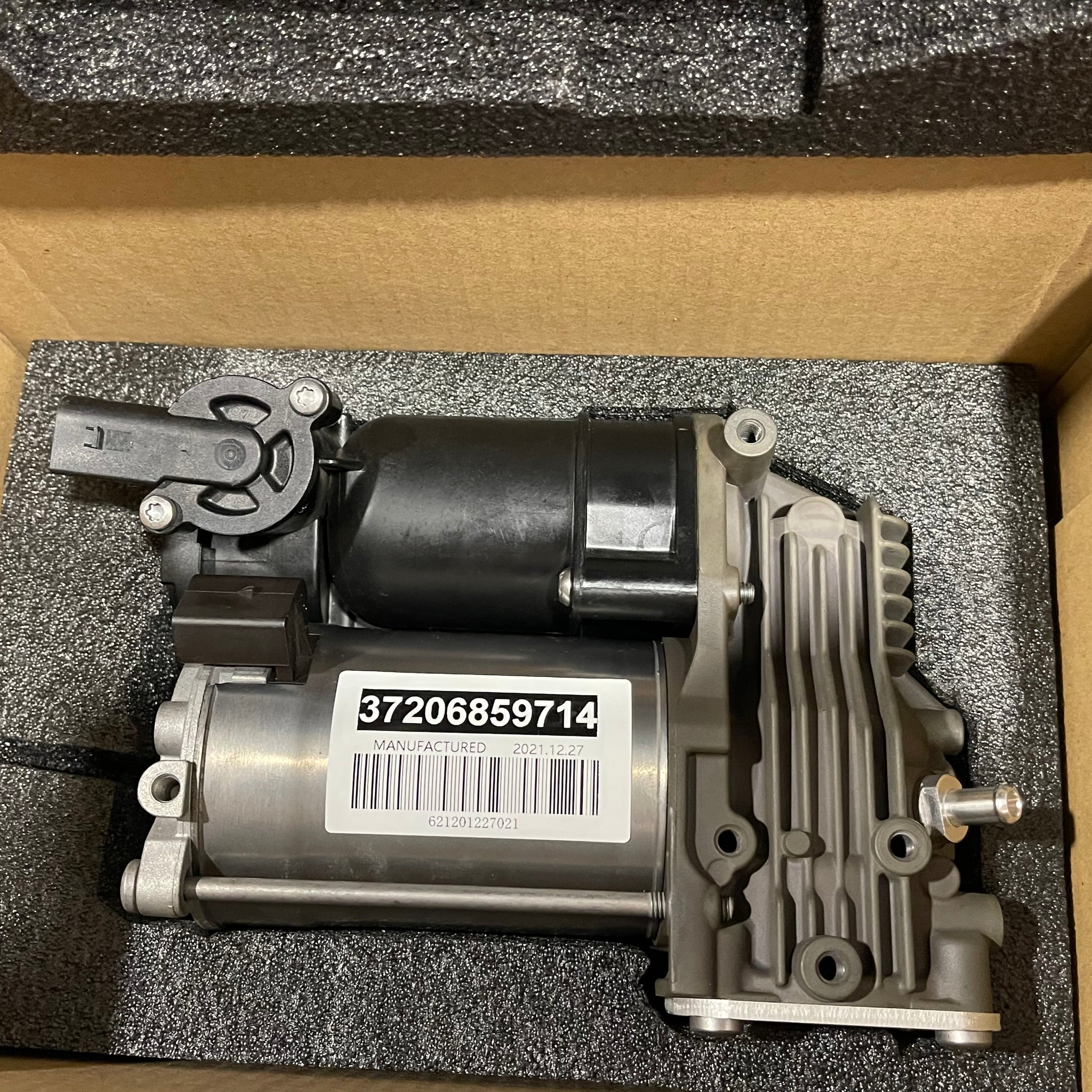

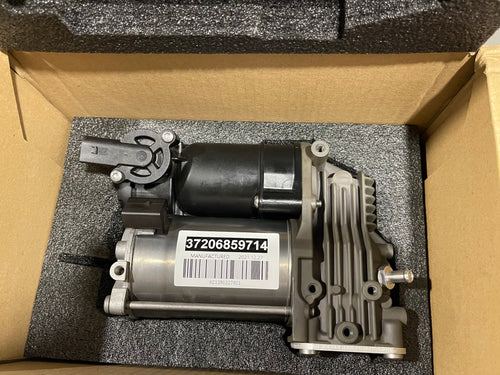

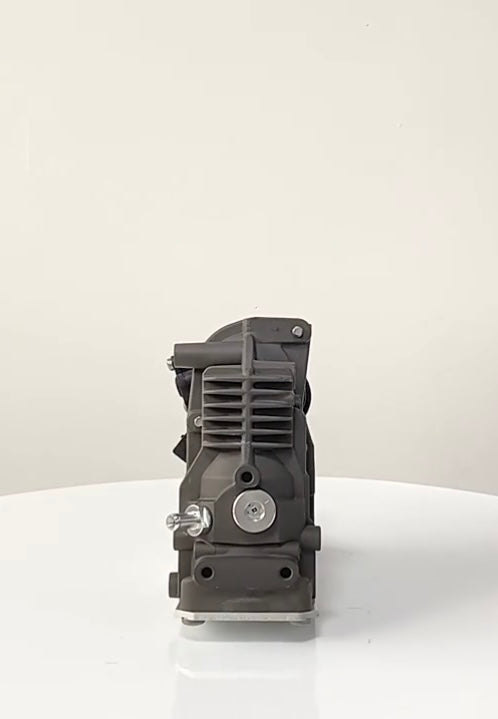

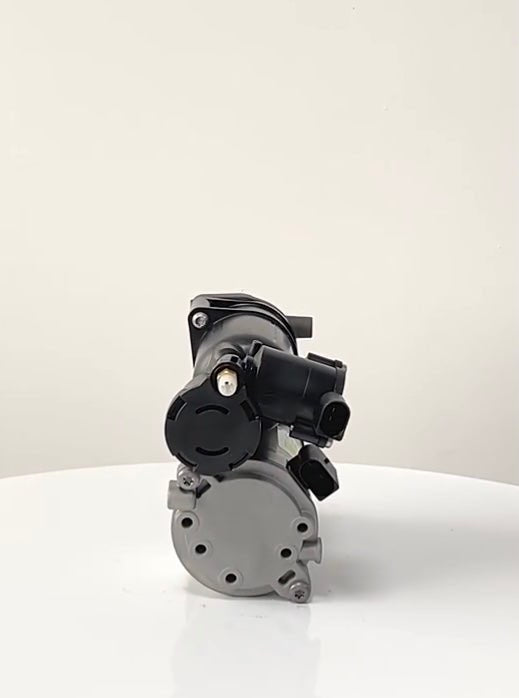

Air Suspension Compressor Pump Suit For X5 E70 X6 E71 E72 37206859714 37206799419 37106793778 37 10 6 79 3778

Brand New compressor relay is included, old relay needs to be replaced prior compressor installation.

This air suspension compressor pump can be installed in the following vehicles:
X5/E70 (2006~2013) , X6/E71+E72 (2008~2014)

OE Numbers:

37206799419
37206859714
37206789938
37226785506
37226775479
AMK-OEM:
A2018

Compressor is also suitable for:
BMW 5-Series E61 Touring (2004~2010). Please let us know you purchasing for E61, relay for 5 Series and compressor air filter will be included.
OE Numbers:
37106793778
37206792855
37106789937
61316919113

When replacing the air compressor please keep in mind, that usually compressor failed when air system has leak. Too many turns on will cause compressor relay to stick together causing compressor to overrun. When installing new compressor included Brand New relay must be installed and air system checked for leaks.
Using vehicle with any present air leak will overheat the compressor causing it to fail.

Specification:
Material: Aluminum+ Plastic

Warranty Information:
1 Year/ Unlimited Kms



Installation Instructions
Please read these installation instructions careful
ly before installing the compressor:

1. The main reason for compressor failure is air leakage from the air suspension system, causing the compressor to overwork and burn out.

Common causes of system leaks are:

- Air spring aging and leaking.

- Worn seals, O-rings and worn air hoses.

- Valve block leaking.

2. Compressor running too long and too frequently, too many turns on will cause the relay contacts to stick together. The result is that the relay no longer works, and the compressor continues to run uncontrollably until it burns out. The included relay must be replaced before the compressor is installed, even though it still seems to work.

3. The air intake hose filter element has been used for too long and has no effect of filtering and drying air. As a result, the compressor sucks in moisture, and the rust burns the pump. In this case, it is necessary to replace the intake hose and replace the air filter.

4. Otherwise, the compressor will be damaged very quickly, which will void the warranty.

In conclusion, all causes of compressor damage must be completely eliminated before installing a new compressor. And replace the relay, air filter if applicable, or the compressor warranty will be voided!

Tips:

1. Must be disassembled and installed in a professional service provider or repair shop.

2. Be sure to check the system for leaks after servicing, the easiest way is to stop the vehicle and record the height from the ground to the lower edge of the fender. Measure these heights again the next day and compare them to the previous heights. After the vehicle has been parked overnight, the compressor typically does not need to run for more than 20 to 30 seconds before the system starts.
