CarPlay-AndroidAuto Installation guide
https://drive.google.com/drive/folders/1DLSQJJQc1VVTZ0Zo9YEcCvoLFW-iECof?usp=sharing
Firmware MCU upgrade file
https://drive.google.com/drive/folders/1FtKtz4HU0V2sL0DUYUxp8Hui7jIf4iWf?usp=sharing

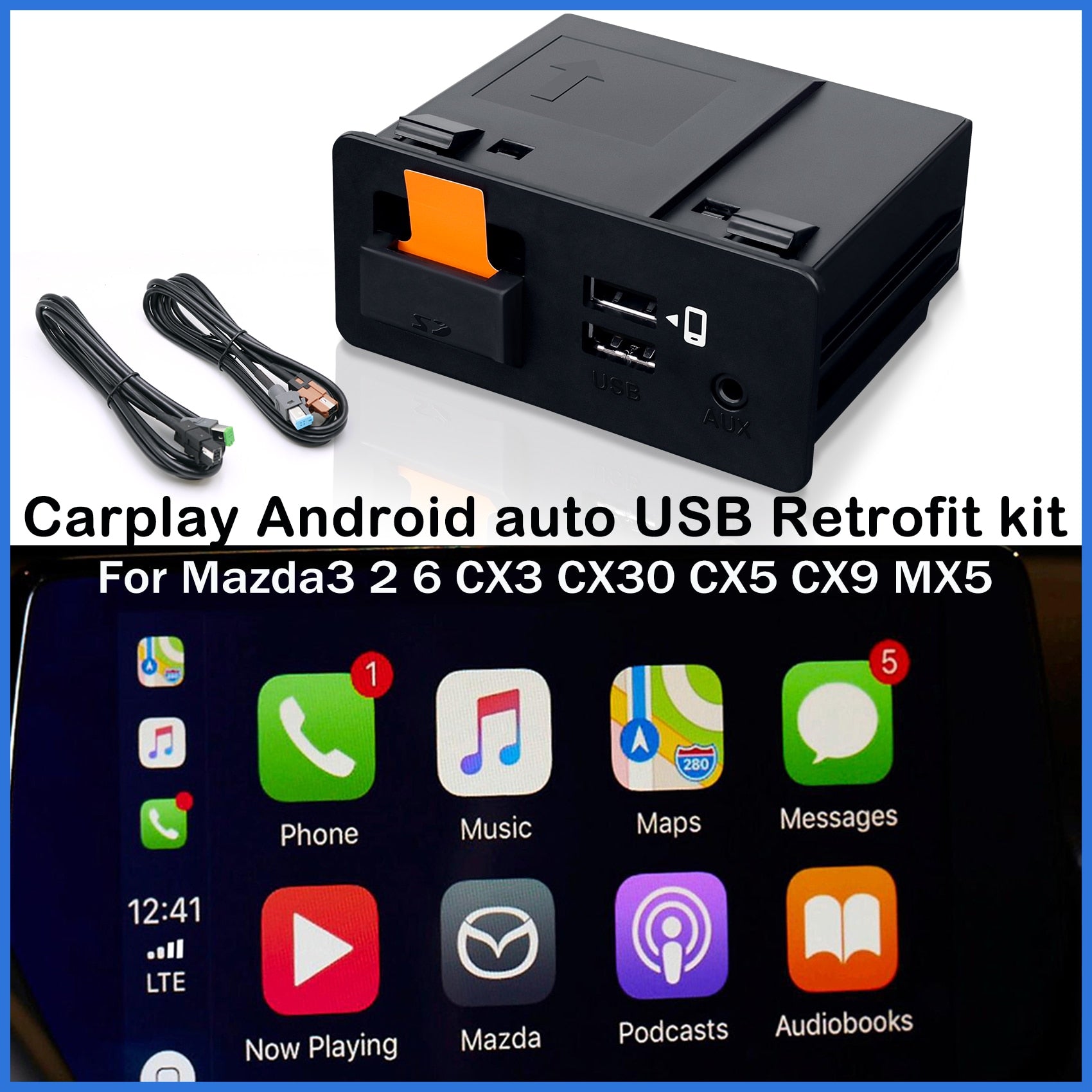

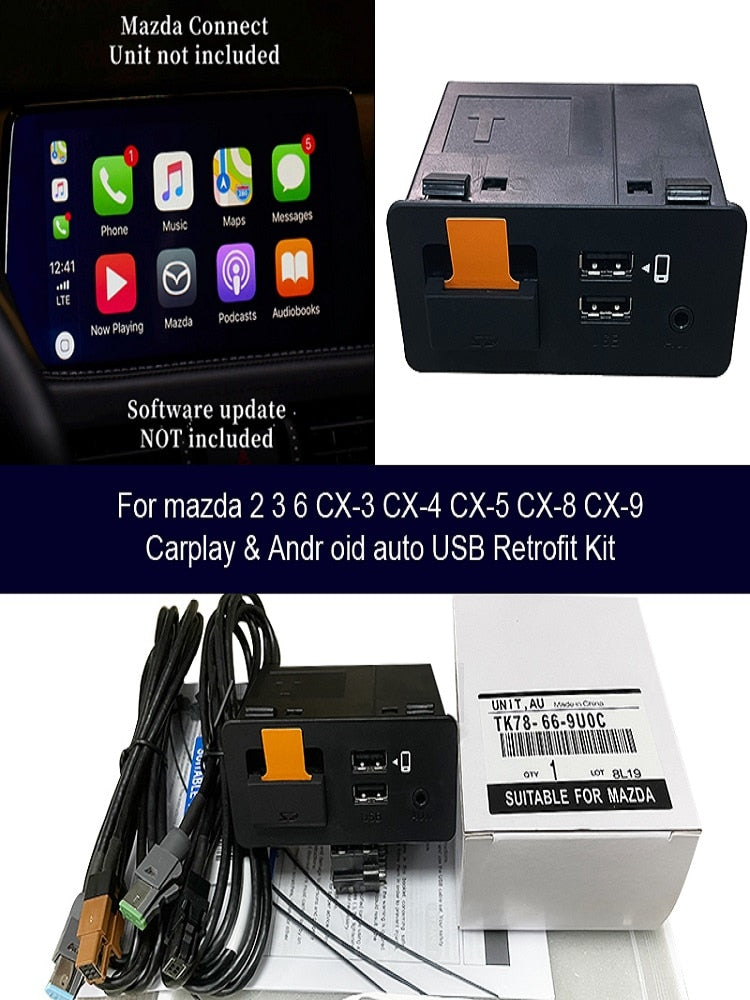

This kit includes 1 cable kit C922-V6-605A and USB Hub TK78-66-9U0C
The firmware MUST BE UPDATED FIRST before beginning the installation. If an older version of the CMU software is being used, the CarPlay/Android Auto-compatible USB hub may not be recognized. The software must be v70.00.21 or later. If not be sure to update the software. Once the CMU has been attached to the CarPlay/Android Auto-compatible USB hub, the software cannot be updated.

BEFORE you START, Switch CAR OFF, Then Remove Navigation 'SD Card' and LEAVE the SD Card OUT of the Car until the FINAL File is Installed, Then Car OFF again, then Insert SD Card. Then start car. The Navigation will work as normal when using CONNECT.

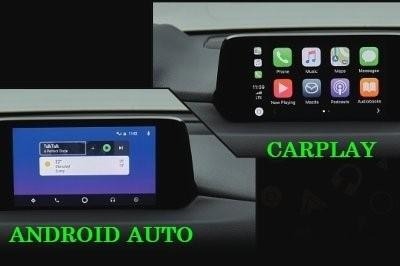

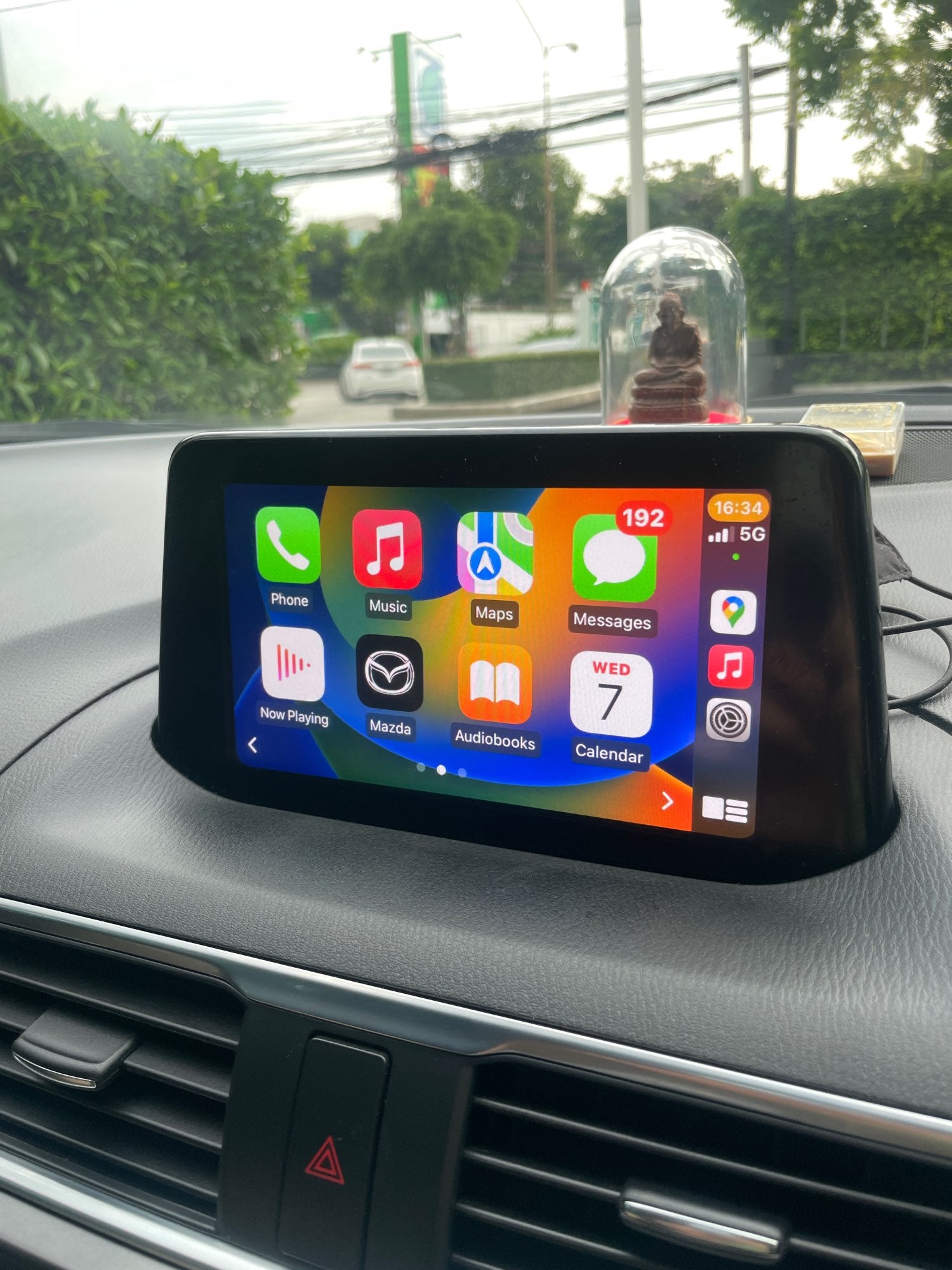

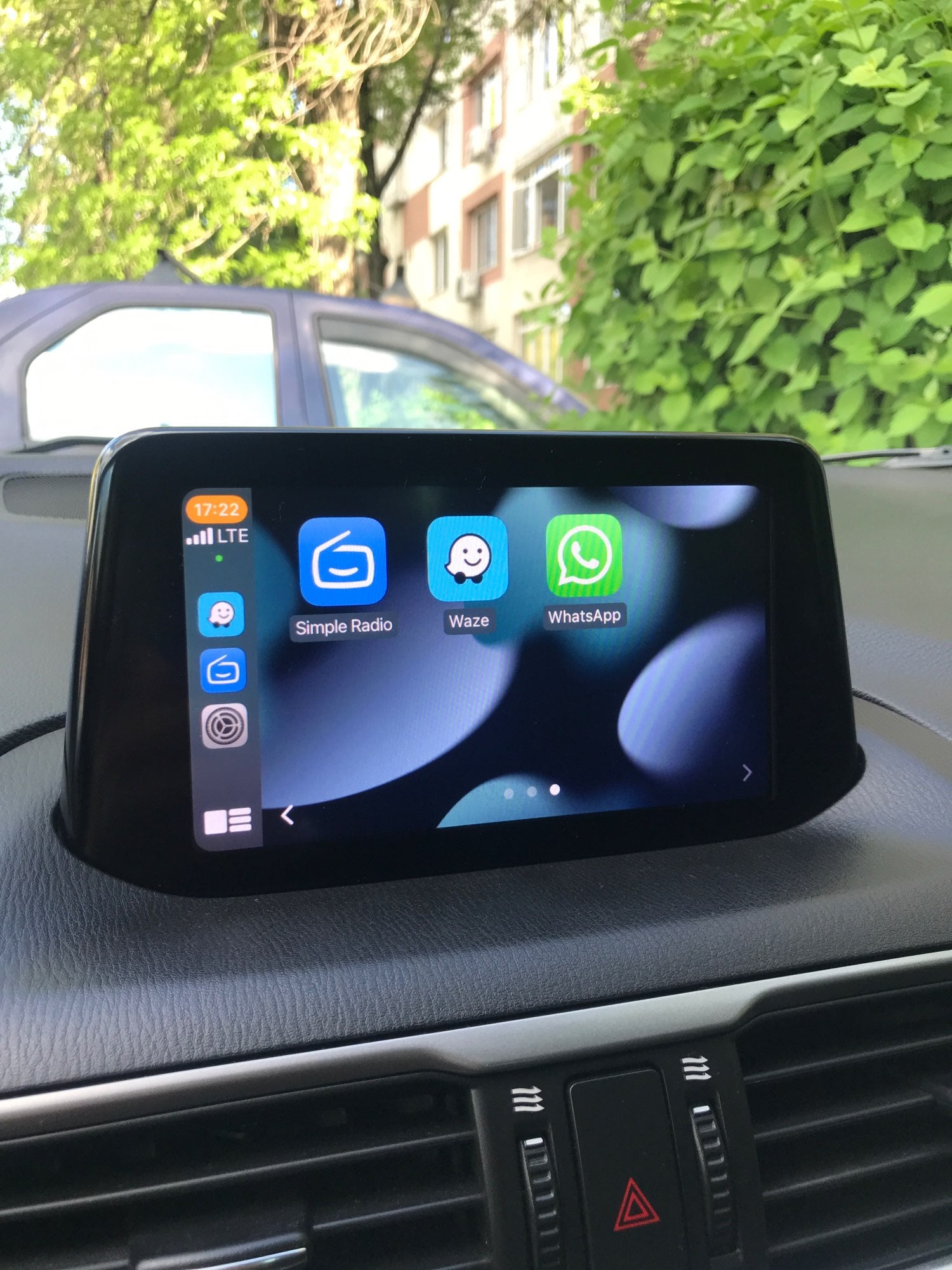

Stay connected to your world while keeping your eyes focused on the road with our smartphone screen mirroring kit. This upgrade kit enhances the MAZDA CONNECT infotainment system with Apple CarPlay allowing you to access your iPhone’s maps, playlists, contacts and compatible apps with your voice through Siri. Siri will also read incoming text messages and allow you to reply without taking your hands off the wheel. You can also navigate the features of Apple CarPlay with the optimally positioned multifunction Commander control. For Android users, this upgrade also adds Android Auto  functionality.
Compatible with the following models
Fits:  MX-5    2016 to 2020
Fits:  CX-3    2016 to 2019
Fits:  CX-5    2015 to 2020
Fits:  CX-9    2016 to 2020
Fits:  Mazda 2   2016 to 2019
Fits:  Mazda 3   2014 to 2018
Fits:  Mazda 6   2016 to 2020
Compatible with the following :
MAZDA Genuine Parts is precisely for the Model Years from 2014 to Today which covers MAZDA 2, MAZDA 3, MAZDA 6#,
MAZDA CX-3, CX-5#, CX-8, CX-9 and MX-5/Miata/RF.
#This Genuine Mazda CP/AA Retrofit Parts Kit and Firmware/Software is not for 1st Generation of Mazda CX-5 and Mazda 6
using the factory TomTom in-Dash Navi.
NOTE: IF your NEW 2019~ Mazda Models (listed above) DOES NOT come Standard with Factory Fitted CP/AA but has 'any'
Version of 70.00.xxxx Firmware already installed from MAZDA Factory then ALL you need to purchase and then install are the
TWO Mazda Parts Listed below in PINK for your Region to get fully working CP/AA.
These Details and Parts Do NOT apply to ALL NEW Next Gen 2019 Mazda 3 (BP) or 2020 Mazda CX-30 (DM).
All you need to know is written here, with all the Links to download files, tips and instructions,
Please Follow these Details 100% exactly. DOWNLOAD LINKS BELOW in LIME GREEN, Click on..
YES You can also install this New Updated 70.00.352B Firmware (Region specific) ONLY Without doing the Hardware
Installation of the two New Genuine Mazda Parts.
By installing this new 70’s Firmware ONLY your car will have the very latest available CONNECT Operating System
and is FUTURE CP/AA READY...which can be done at any later date or never.
See Changelog .Pdf in Server for all the current bug fixes and features updated for 70.00.352B Firmware.
IF later you want a working CP/AA Feature you still MUST install the TWO New Genuine Mazda Parts.
********************************
Below will show you how to and where to go to get the Genuine Mazda FIRMWARE Files from for free and where to download
the Video's and .Pdf Instructions. Modfreakz hosts all in his Hi-Drive Server.
Purchase is ONLY for GENUINE Mazda CarPlay with AndroidAuto and WILL NOT WORK without Installation of new 70's
Firmware FIRST and THEN the TWO ALL NEW Genuine Mazda Parts installed Second and Third . .. in that ORDER ... PERIOD!
********************************
New revised FIRMWARE UPDATE INSTRUCTIONS.Pdf is Now in SERVER .....
New SINGLE File 70s FIRMWARE is Now Out* ......
New CHANGELOGs .Pdf List of changes and fixes is also now in Server.
*Method in these new Updates are now ONLY a Single 'UPDATE.up' File to Run.
No more separated Fail-safe + Reinstall.up files, Now ONLY ONE 'update.up' File.
You Select either “Reinstallation Package” or ''Update Package'' AFTER file 'SEARCHING' from
your USB Mounted ‘USB FLASH DRIVE' which contains the correct 70.00.352B File for your Region.
**********************************
ALL the other New Mazda Parts are a MUST DO Requirement as the process of adding and the installing of CP/AA Firmware and
the MUST have Genuine Mazda Parts has NOT Changed. DO NOT BUY or USE any other systems 'put together last year' as this
WILL corrupt the use of this very latest Genuine Mazda UPDATED 70s FIRMWARE listed below.
NOTE: There are some cheap options to separately install AndroidAuto ONLY without CarPlay and the 2 New Mazda Parts Listed
Below in PINK, I strongly advise NOT to go down this route as you must use the OLD and Outdated 59 Firmware which is buggy
and at times very unreliable with communication errors infecting OTHER working Systems Hardware inside your car like, engine,
IC control modules or display screen.
SEE the long newly added CHANGELOG List, you should only use latest Mazda Firmware or you will have issues as listed in the
Changelog. The GENUINE Mazda Firmware here is Free and the Genuine Mazda Parts are not that expensive and Mazda is still
maintaining Firmware updates for quite a few more years.
********************************
Read the 'READ-ME' WARNINGS, PLUS all the Firmware Numbers and Genuine Mazda Part Numbers for YOUR Correct REGION + Free
Download Links are all below.. …DOWNLOAD LINKS BELOW in LIME GREEN, Click on..
********************************

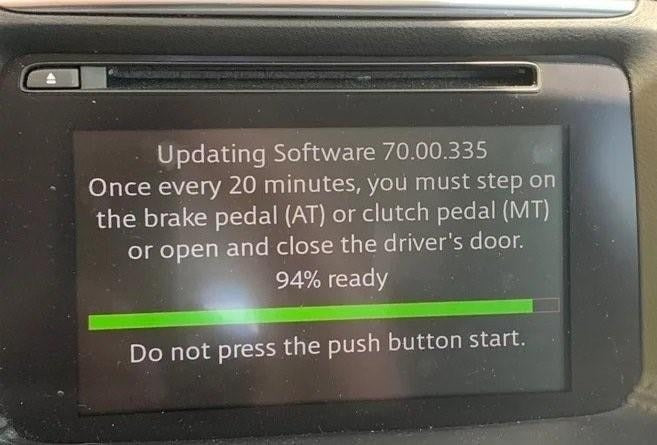

You MUST install all New MAZDA CarPlay/AndroidAuto 70.00.352B FIRMWARE FIRST (as .up File) for your Region.

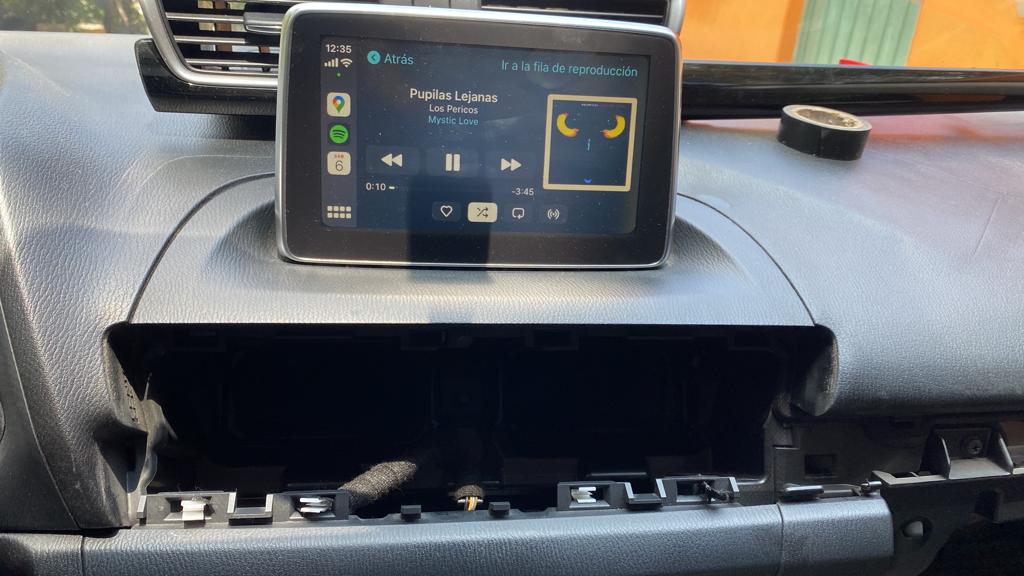

BEFORE You remove Trim pieces and BEFORE You INSTALL New USB Cables and

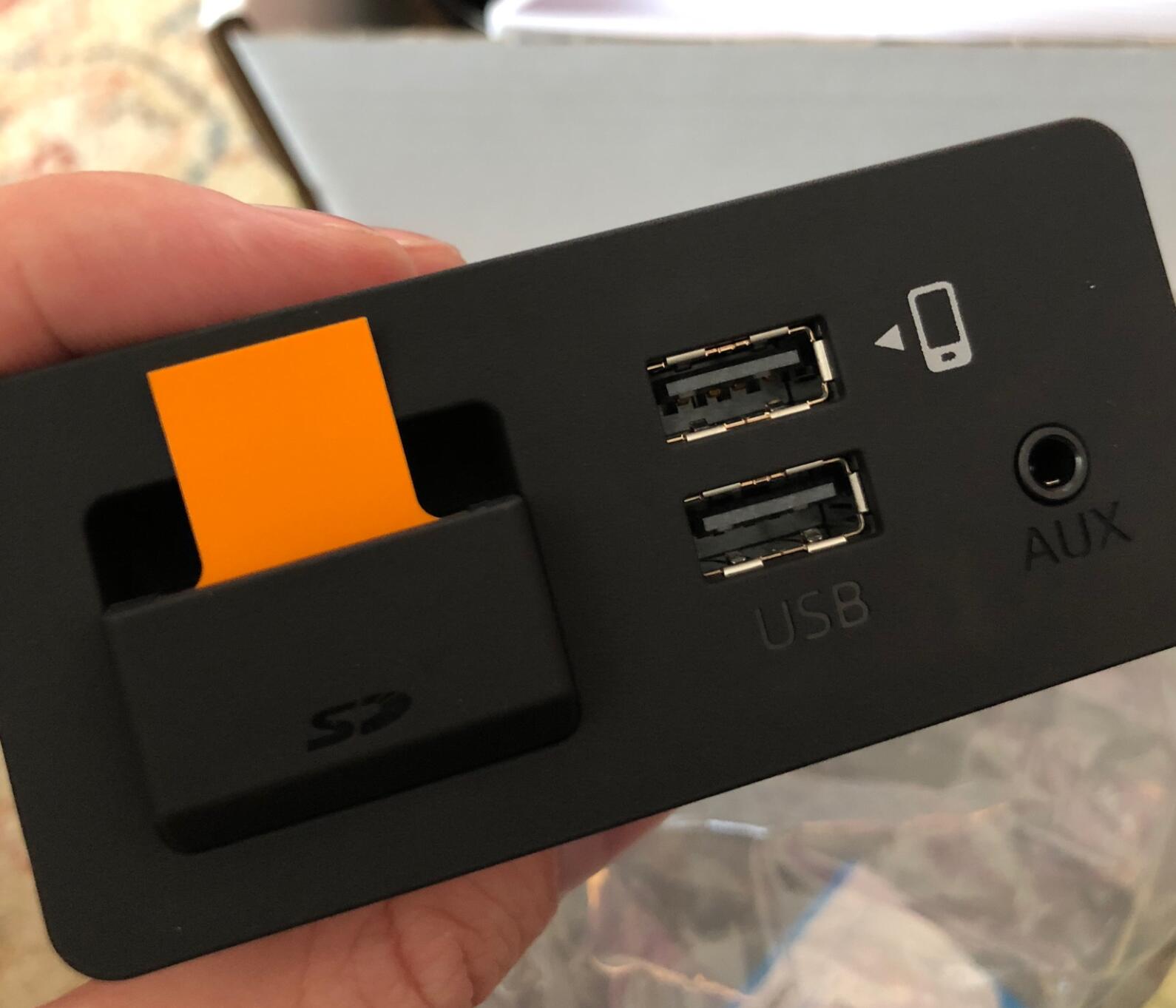

BEFORE You INSTALL New 'C' AUX Module Unit (one with orange label).
********************************
********************************
SEE the GENUINE Mazda Part Numbers (You Need One of Each) listed below Page 5 in PINK for your Region.
ONLY USE CORRECT Firmware (.up File) for Your Region, either one of EU N or NA N or 4A N (ADR).....
JP M (Japan) or MAZ (Generic) or CH N (China) Firmware is NOT available as we have no Mazda Dealer file donors.
********************************
REPEAT......
Install run New FIRMWARE 70.00.352B FIRST.
See the *MAZDA FIRMWARE UPDATE PROCEDURE WORLDWIDE*.pdf Instructions. (Download it and Print it Out).
Then MUST install the NEW Genuine Mazda Parts LAST.
ANY OTHER order of Installation and NOTHING will work.
********************************
Genuine CP/AA will NOT work without these new MAZDA Parts correctly installed...see PINK Mazda Part Number List Below.
1. New USB Data Cable Set.

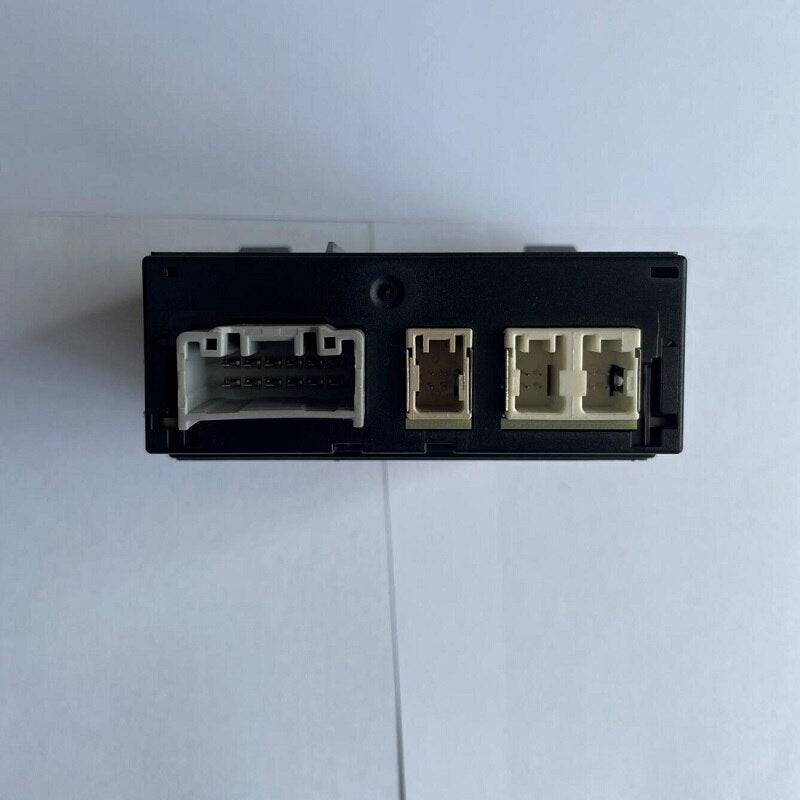

2. New AUX Hub Module.
This Process means doing 3 separate tasks to get it working.
1. New Mazda 70.00.352B.up Firmware install and use in car FIRST.
2. New Mazda USB Data Cable Set.
3. New Mazda AUX Hub Unit, MUST be the 'C' Hub (the Plain, A, or B will NOT Work).
********************************
THERE ARE NO SHORT-CUTS TO THIS CORRECT PROCESS.
GET YOUR MAZDA DEALER TO INSTALL IF YOU CAN NOT DO THIS.
********************************

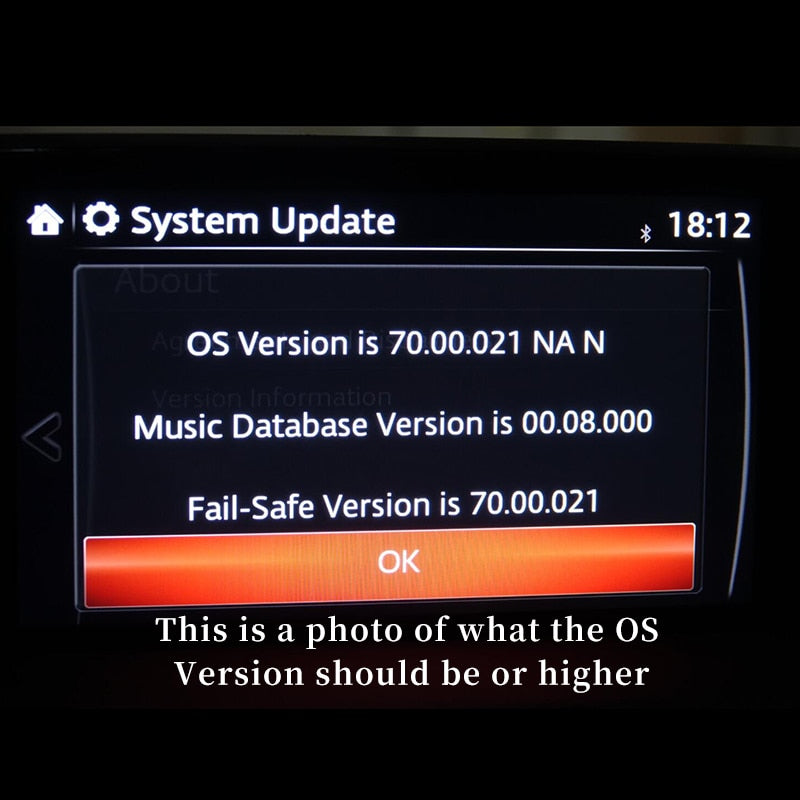

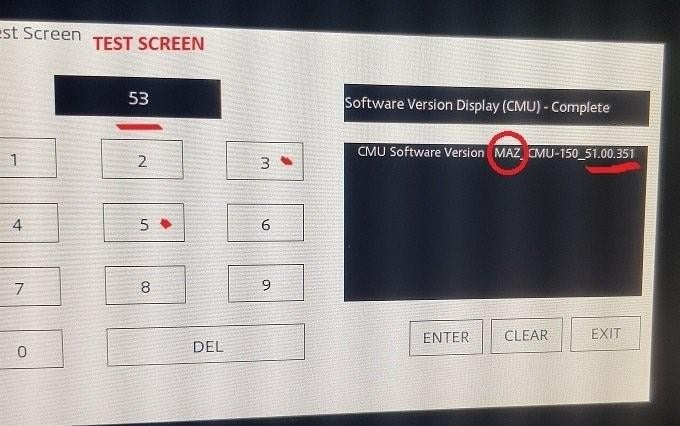

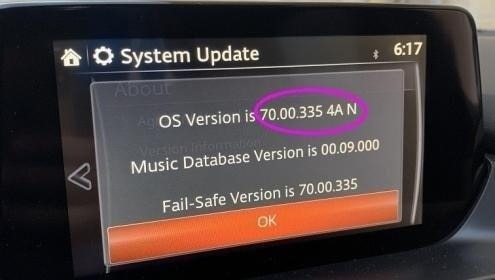

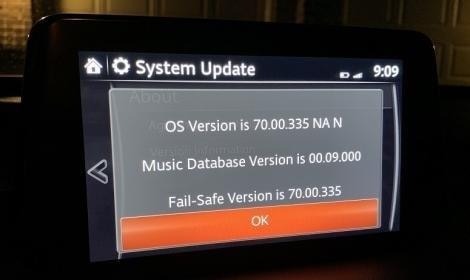

WHAT 'OS VERSION' NUMBER AND 'REGION' CODE IS IN MY MAZDA-MZD CONNECT RIGHT NOW...?
Latest available Firmware 'OS Version' is listed separately BELOW for each of the 3 main Regions worldwide, to see yours now go
cars Touchscreen, Touch RED ROUND ''Settings'' Icon, then Touch top right SILVER ''System'' TAB, scroll down to ''About''
Touch it, scroll down to ''Version Information'' Touch it, this screen should tell you your 'OS Version' Number and Region Code
so you know which 'update.up' Region File to Download to your PC Desktop (ONLY USE A INTEL WINDOWS 10 PC).
